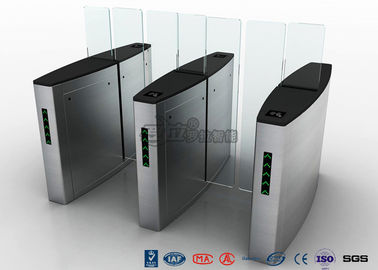

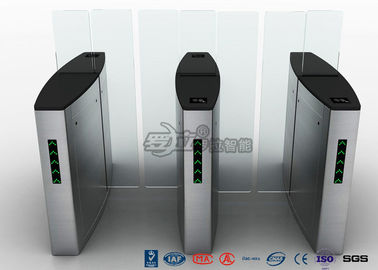

Stainless Steel Access Control Turnstiles , Sliding Turnstile Security Systems

Stainless Steel Access Control Turnstiles , Sliding Turnstile Security Systems

  • Stainless Steel Access Control Turnstiles , Sliding Turnstile Security Systems
  • Stainless Steel Access Control Turnstiles , Sliding Turnstile Security Systems
Stainless Steel Access Control Turnstiles , Sliding Turnstile Security Systems
تفاصيل المنتج:
مكان المنشأ: China
اسم العلامة التجارية: RONA
إصدار الشهادات: CE / ISO9001
رقم الموديل: RNCF1066 / RNCF1066S
شروط الدفع والشحن:
الحد الأدنى لكمية: 1 unit
الأسعار: negotiation
تفاصيل التغليف: carton and wooden packing
وقت التسليم: 7-15 أيام عمل
شروط الدفع: T/T,
القدرة على العرض: 2000 وحدة لكلّ شهر
اتصل
مفصلة وصف المنتج
مواد الإطار: 304# صلب الذى لا يصدأ سمك رقائق: 1.3 مم أو 1.7 ملم
إنهاء: سطح ناعم أو سطح تلميع البعد: 1210L * 310W * 1000H مم
المواد من انزلاق: يليّن زجاج تمتد خارج انزلاق طول: 230 ~ 235mm
تسليط الضوء:

,

,

access control barriers

Stainless Steel Access Control Turnstiles , Sliding Turnstile Security Systems





PRODUCT CLASSIFICATIONS:

It may be divided according to the combination type of core mechanism: single-core mechanism and dual-core mechanism.



-> Single-core mechanism: RNCF1066

The sliding barrier only equipped with single-core in the cabinet as shown in Fig.1, usually be used in single lane or multi-lane applications.

-> Dual-core mechanism: RNCF1066S

The sliding barrier equipped with independent dual-core in the cabinet as shown in Fig.2, usually be used in multi-lane applications.



TECHNICAL SPECIFICATIONS:

Product Name

Sliding Gate Turnstile

Model

RNCF1066

RNCF1066S

Classifications

Single-core mechanism

Dual-core mechanism

Framework

304# Stainless Steel (default)

Thickness of ply

1.7mm

Finish

brushed surface, polishing surface or anti-fingerprint surface (optional);

Size (L*W*H)

1210mm*310mm*1000mm (default)

Material of flap

Tempered glass

Stretching-out flap length

230~235mm

Height of Sliding Gate

max of 1500mm (optional)

Machine center

Germany technological motor

Power voltage

AC220V±10%, 50Hz±10%

Driver motor

DC Stepper motor

Main-board voltage

12V DC

In-built Infrared

6 pairs/lane

Passing speed

30 persons/min

Passage Width

550mm

Opening / closing time

0.6 seconds

The time required to running state after power on

3 seconds

Automatic reset time after the failure

10 seconds

Mean time to failure

min. 5 000 000

Operation temperature

-10℃ ~ +70℃

Relative humidity

less than 95% not condensed

Working Environment

Indoor/Outdoor (with rain-tent cover)

Input port

relay dry contact signal; +12V level signal or DC12V pulse signal

Communications port

RS232/ RS485 electric standard, communications range≤1200m.

Warranty

12 months

Certificate

CE





PRODUCT DESCRIPTIONS:

The retractable sliding gate turnstile controls pedestrian access between public and secure areas. The turnstile lane uses an array of optical sensors to determine the number and direction of persons passing through the lane. The turnstile uses a retractable sliding gate to block the pedestrian’s path.



The sliding turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, bar-code scanner, Token /ID/IC card reader, time & attendance system, coin collector, card collector, biometric systems (fingerprint & face recognition), consumption system, ESD system and fare collection system, etc.



The sliding gate turnstile provides bi-directional and unidirectional access control and free passage modes (described below). In access control mode, upon receipt of a valid card signal from an access control system, the motorized barrier slidings of the turnstile quickly retract into the cabinet, and the integrated sensors allow a single user to pass through the turnstile in the requested direction. If an unauthorized user attempts to tailgate on the entry, the unit will recognize the illegal passage, a violation alarm (with user configurable sounds) will sound, or red notification lights will flash.



As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down rod control may be realized in emergency for.



APPLICATIONS:

Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Corporate Lobbies, Buildings, Banks, Hotel, Super market, Park, Building Sites, Museums, Retail outlets, Railway Terminals and Airports etc.



STANDARD FEATURES & FUNCTIONS:

  • -> Obstacle safety detection with audible alarm, to convenient for users to maintain and use.

  • -> The running status of device can be set up through pressing the built-in small keyboard of the main control board.

  • -> With a variety of operating models and functions, it can be programmed to be bi-directional access, or exit by sensors.

  • -> Equipped with infrared photo beam sensors, mechanical double anti-folding feature, effectively protects against pedestrian accidents / injuries.

  • -> Reset automatically, anti-tail, anti-reverse intrusion, dual anti-pinch and stop unauthorized access.

  • -> Acoustic signal for announcement of unauthorised use.

  • -> Barrier locked in closed position to prevent force intrusion, until a valid access control signal is received.

  • -> Time out reclosing feature, if never detect anyone pass thru the barrier, will auto reclose at defined value. The standard default is 10 seconds. (1 to 60 second adjustable);

  • -> Emergency-escape function: When power failure, barrier will auto open to meet the request of fire protection. Also barrier will open by pressing the emergency button which can be remote-controlled whether the power is on or not. (Optional).

  • -> Standard fire alarm input interface, requires N.C normally close contact.

  • -> The turnstile system can easily integrates with the 3rd party equipment with read facilities, such as biometric reader, consumption system, ESD system and access control system etc.

  • -> The turnstile system can be hooked up with multiple reader equipments together. Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID/IC card, fingerprint and face detection etc.

  • -> Operation model: Both direction can be set as controlled mode, free mode or disable model, two or one direction can be controlled by switch- button or access controller. (Free model means automatic open by infrared beam detecting, controlled model means use valid access controller signal to open, disable model means forbidding anyone pass thru).

  • -> Direction indicator function: Traffic lights on both sides of the turnstile barrier are the indicator of access status, When the traffic lights show green, it means to pass and the red light means no-entry. The traffic lights on both sides can be set to indicate access for left or right or bi-direction.

  • -> With normally open & normally closed working mode available.

  • -> Through the management computer to realize remote control and management.

  • -> Approved CE certificate



OPERATION MODELS:

The turnstile provides bi-directional access control. Each direction may be in one of three states:

  • -> Free passage: all person are authorized to pass under all conditions

  • -> Controlled access: each person must use a card reader before being authorized to pass

  • -> Lane closed: no persons are authorized to pass, and security cards are ignored



WARRANTY:

The manufacturer guarantees that the turnstile complies with applicable statutory safety and electromagnetic requirements provided that the instructions on storage, installation and operation are observed.

The warranty period is 12 (twelve) months commencing from the date of sale.



DIMESNION SPECIFICATIONS:
Stainless Steel Access Control Turnstiles , Sliding Turnstile Security Systems 0





Stainless Steel Access Control Turnstiles , Sliding Turnstile Security Systems 1
