مكان المنشأ: | China |
اسم العلامة التجارية: | RONA |
إصدار الشهادات: | CE / ISO9001 |
رقم الموديل: | Customized |
الحد الأدنى لكمية: | 1 Lane |
---|---|
الأسعار: | negotiation |
تفاصيل التغليف: | carton and wooden packing |
وقت التسليم: | 7-15 أيام عمل |
شروط الدفع: | T/T, |
القدرة على العرض: | 2000 وحدة لكلّ شهر |
المواد: | 304 # الفولاذ المقاوم للصدأ | إنهاء: | سطح مصقول / سطح تلميع |
---|---|---|---|
الجهد الكهربائي: | AC220V ± 10٪ ، 50 هرتز ± 10٪ | محرك السائق: | العاصمة محرك سيرفو |
سرعة المرور: | 40 شخص / دقيقة | عرض الممر: | 600 مم ~ 1200 مم |
درجة حرارة التشغيل:: | -10 ℃ ~ 70 ℃ | منفذ الاتصالات: | RS232 / RS485 |
تسليط الضوء: | الأمن أقفال الباب,حاجز الباب الدوار,barrier turnstile |

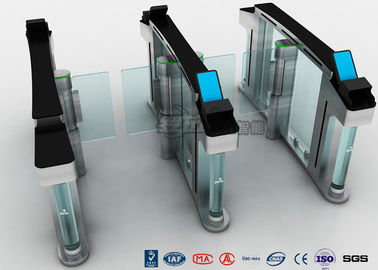

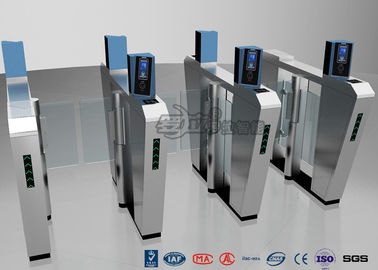

Waist Height Turnstile Security Systems , Face Recognition Speed Fastlane Turnstile
PRODUCT DESCRIPTIONS:
The fastlane turnstile combines slim line styling with one of the industries widest passages. It has clear, bi-directional swinging motorized barrier panels and a stylish, architectural design that enhances any access control installation. Its sleek design and smaller footprint makes it compatible with any upscale business or institutional environment.
The fastlane turnstile controls pedestrian access between public and secure areas. The fastlane turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, time & attendance system, consumption system, ESD system and fare collection system, biometric systems (fingerprint & face recognition), bar-code scanner, Token/ID/IC card reader, coin collector and card collector, etc.
SPECIFICATIONS:
Framework |
304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional) |
Thickness of ply |
1.7mm |
Finish |
brushed surface, polishing surface |
Shell's size (L*W*H) |
Customized |
Swing arm material |
Tempered glass or Acrylic (optional) |
Stretching out swing length |
260mm~600mm |
The inductive card reader dimension |
equipped with the standard mounting brackets or tailor. |
Machine center |
Germany technological motor |
Power voltage |
AC220V±10%, 50Hz±10% |
Driver motor |
DC36 servo motor |
Main-board voltage |
12V DC |
In-built Infrared |
6 pairs/passageway |
Passing speed in normally open mode |
50 persons/min |
Passing speed in normally closed mode |
40 persons/min |
Passage Width |
600mm ~1200mm |
Swing arm transmission angle |
180° |
Swinging direction |
unidirectional or bi-directional |
Opening / closing time |
0.1 seconds |
The time required to running state after power on |
3 seconds |
Automatic reset time after the failure |
1 seconds |
Mean time to failure |
min. 5 000 000 |
Operation temperature |
-10℃ ~ +70℃ |
Relative humidity |
less than 95% not condensed |
Working Environment |
Indoor/Outdoor (with rain-tent cover) |
Input port |
relay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal |
Communications port |
RS232/ RS485 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet |
APPLICATIONS:
Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Buildings, Banks, Museums and Airports, etc high-end places.
TECHNICAL DETAILS:
1. Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.
2. With normally open & normally closed working mode
3. Real time failure self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation.
4. With direction indication, guiding passenger to entry and exit.
5. Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000. (Optional)
6. Sound/light (Light is optional) alarm indication function, preventing illegal entry or irregular passing.
7. After the system power is cut off, the plate barrier starts the standby power to withdraw the barrier, so that the passage is ensured to be smooth and to divert the flow of passenger timely.
8. The infrared sensing technique realizes real time monitor of passage, safe protection and tail-proof.
9. The treatment mode in emergency or in special conditions.
10. Super strong combination capability, with the combined application of products of different passage types and series, not affecting the system performance.
11. Strong system expending capability, available to add new product at any time.
12. Far end control management: function to far end control of barrier mode, meeting the special requirements of the users and the fire protection.
