Waist High Turnstile Security Systems , Biological Recognition Flap Barrier Gate

Waist High Turnstile Security Systems , Biological Recognition Flap Barrier Gate

  • Waist High Turnstile Security Systems , Biological Recognition Flap Barrier Gate
  • Waist High Turnstile Security Systems , Biological Recognition Flap Barrier Gate
Waist High Turnstile Security Systems , Biological Recognition Flap Barrier Gate
تفاصيل المنتج:
مكان المنشأ: China
اسم العلامة التجارية: RONA
إصدار الشهادات: CE / ISO9001
رقم الموديل: Customized
شروط الدفع والشحن:
الحد الأدنى لكمية: 1 Lane
الأسعار: negotiation
تفاصيل التغليف: carton and wooden packing
وقت التسليم: 7-15 أيام عمل
شروط الدفع: T/T,
القدرة على العرض: 2000 وحدة لكلّ شهر
اتصل
مفصلة وصف المنتج
المواد: 304 # الفولاذ المقاوم للصدأ إنهاء: سطح مصقول / سطح تلميع
الجهد الكهربائي: AC220V ± 10٪ ، 50 هرتز ± 10٪ درجة حرارة التشغيل:: -10 ℃ ~ 70 ℃
منفذ الاتصالات: RS232 / RS485 الرطوبة النسبية: أقل من 95٪ غير مكثف
بيئة العمل: داخلي / خارجي (مع غطاء خيمة مطر) منفذ الإدخال: relay dry contact signal; تتابع إشارة الاتصال الجافة ؛ +12V level signal, pulse wid
تسليط الضوء:

الأمن أقفال الباب,حاجز الباب الدوار

,

barrier turnstile

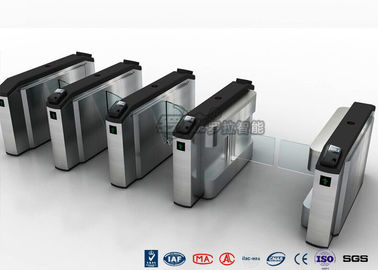

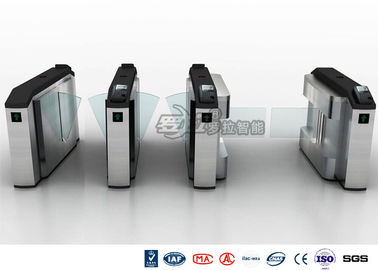

Waist High Turnstile Security Systems , Biological Recognition Flap Barrier Gate



PRODUCT DESCRIPTIONS:

The turnstile system combines slim line styling with one of the industries widest passages. It has clear, bi-directional swinging motorized barrier panels and a stylish, architectural design that enhances any access control installation. Its sleek design and smaller footprint makes it compatible with any upscale business or institutional environment.



The turnstile system controls pedestrian access between public and secure areas. The fastlane turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, time & attendance system, consumption system, ESD system and fare collection system, biometric systems (fingerprint & face recognition), bar-code scanner, Token/ID/IC card reader, coin collector and card collector, etc.



SPECIFICATIONS:

Framework 304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional)
Thickness of ply 1.7mm
Finish brushed surface, polishing surface
Shell's size (L*W*H) Customized
Swing arm material Tempered glass or Acrylic (optional)
Stretching out swing length 260mm~600mm
The inductive card reader dimension equipped with the standard mounting brackets or tailor.
Machine center Germany technological motor
Power voltage AC220V±10%, 50Hz±10%
Driver motor DC brush motor
Main-board voltage 12V DC
In-built Infrared 6 pairs/passageway
Passing speed in normally open mode 50 persons/min
Passing speed in normally closed mode 40 persons/min
Passage Width 600mm ~1200mm
Swing arm transmission angle 180°
Swinging direction unidirectional or bi-directional
Opening / closing time 0.1 seconds
The time required to running state after power on 3 seconds
Automatic reset time after the failure 1 seconds
Mean time to failure min. 5 000 000
Operation temperature -10℃ ~ +70℃
Relative humidity less than 95% not condensed
Working Environment Indoor/Outdoor (with rain-tent cover)
Input port relay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal
Communications port RS232/ RS485 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet



OPTIONAL & CUSTOMIZED FUNCTIONS:

  • -> Alternative Materials, Finished and Custom Design

  • -> Usage LED Counter function

  • -> Audio and visual alarm in the event of an invalid entry or exit and tailgating

  • -> Remote Controlled Button

  • -> Extra add sensors transmitter and receiver type

  • -> Infrared sensors reset function

  • -> Access Control System Integration

  • -> Camera System Integratio
